Reliable communication in a compact design

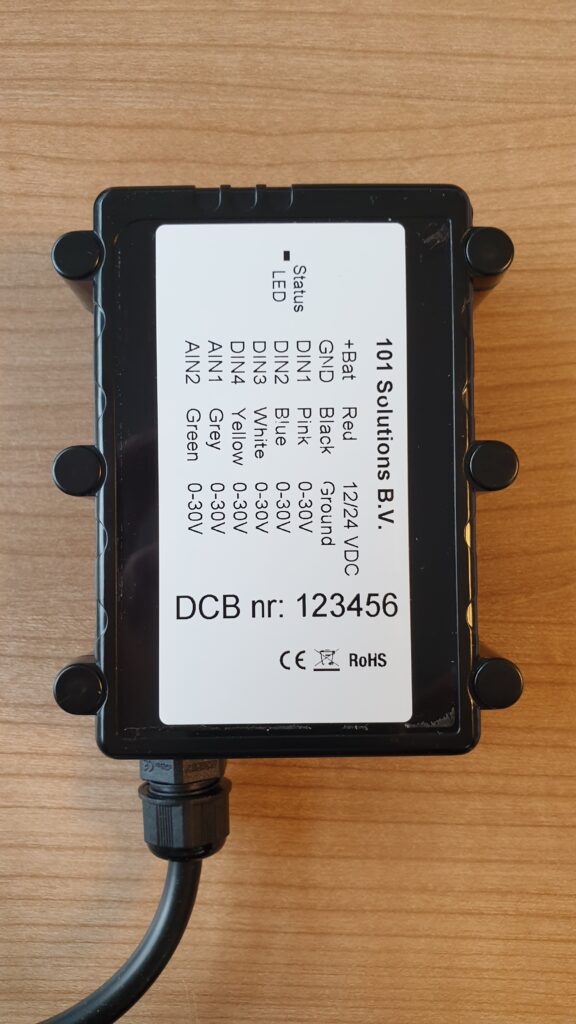

The DCB Light 4G (Data Communication Box) is a compact, powerful module that allows you to easily monitor machines remotely. Thanks to the built-in 4G connectivity, this unit is perfect for mobile applications.
With this module, you continuously collect data from your installations, such as generators, engines, or energy systems. The DCB Light 4G securely and quickly transmits this information to your central dashboard, giving you control over consumption, performance, and any faults.
Thanks to its robust hardware, this solution is suitable for intensive use in various environments, from construction sites to industrial installations.
The module is easy to install and flexible for a wide range of applications. Whether you’re working with temporary systems or permanent installations, the DCB Light 4G adapts seamlessly. Its compact housing makes it ideal for situations where space is limited.
Specifications
| Property | Specification |
|---|---|
| Digital inputs | 4 inputs. Voltage range 0 – 30 VDC |
| Analogue inputs | 2 inputs. Voltage range 0 – 30 VDC |
| GPS/GLONASS antenna | External |
| GSM antenna | Internal |
| Internal memory | 4 MB |
| Power supply | 10 ÷ 32 V DC |
| Operating temperature | -35 to +60 °C |
| Size | 82 x 63 x 28 mm |
| Maximum current rating | 200 mA @ 12 V DC |
| Internal battery | LiPo 3.7 V 190 mAh |
| Power consumption | Idle: 50.1 mA Active: 73.0 mA Sleep: 17.7 mA Deep sleep: 7.2 mA |
| GSM | Modem: Quectel M95 Antenna: Internal (Quad-band) Frequency: 850/900/1800/1900 MHz |
| Protection | IP67 |
| Sim card | Optional available. Standard EU-roaming and multi provider |
| Certifications | E-mark, CE, RoHS, FCC Part 15 |
